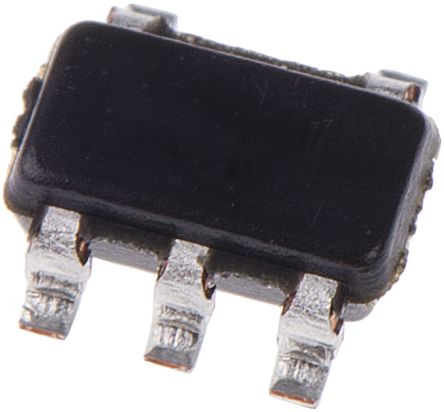

The TPS78233DDCT is a 150mA Ultralow Quiescent Current Low-dropout Line Regulator designed specifically for battery-powered applications where ultra-low quiescent current is a critical parameter. The TPS782 with ultra-low IQ (500nA) is ideal for microprocessors, microcontrollers and other battery-powered applications. The ultra-low power allows designers to customize power consumption for specific applications. The TPS782 LDO is designed to be compatible with the MSP430 and other similar products. The enable pin (EN) is compatible with standard CMOS logic. The TPS782 series also features thermal shutdown and current limit to protect the device during fault conditions.
Low IQ (500nA)
150mA Low-dropout regulator
Low-dropout at 25°C (130mV at 150mA)
Low-dropout at 85°C (175mV at 150mA)
3% Accuracy over load, line and temperature
Stable with a 1.0µF ceramic capacitor
Thermal shutdown and over-current protection
CMOS logic level-compatible enable pin
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
