TPS77801PWPTISingle Channel LDO Single Output LDO, 750mA, Adj.(1.2 to 5.5V), Fast Transient Response, Power Good (PG) Output LDO Regulator Pos 1.2V to 5.5V 0.75A 20Pin HTSSOP EP Tube
¥
15.70

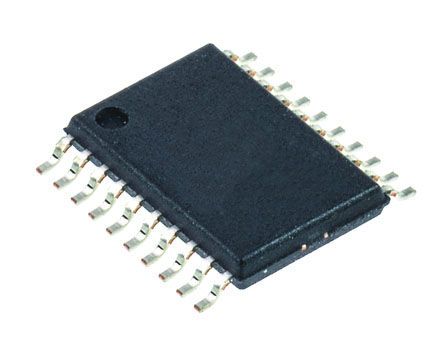

显示的图像仅供参考,应从产品数据表中获得准确的规格。
TPS77801PWPTI
制造商:
TI
制造商型号#:
TPS77801PWP
百芯编号#:
CM56231858
价格(CNY):
¥
15.70
百芯库存:
249
个
库存地点:
可供应量:
184
个在库
此为供应商库存,需要与销售确认
产品类别:
稳压,芯片
产品描述:
Single Channel LDO Single Output LDO, 750mA, Adj.(1.2 to 5.5V), Fast Transient Response, Power Good (PG) Output LDO Regulator Pos 1.2V to 5.5V 0.75A 20Pin HTSSOP EP Tube
The TPS77801PWP is a LDO Voltage Regulator designed to have a fast transient response and be stable with 10µF low ESR capacitors. Because the PMOS device behaves as a low-value resistor, the dropout voltage is very low and is directly proportional to the output current. Additionally, since the PMOS pass element is a voltage-driven device, the quiescent current is very low and independent of output loading. These two key specifications yield a significant improvement in operating life for battery-powered systems. This LDO family also features a sleep mode, applying a TTL high signal to EN\ (enable) shuts down the regulator, reducing the quiescent current to 1µA at TJ = 25°C. The RESET\ output of the device initiate a reset in microcomputer and microprocessor systems in the event of an undervoltage condition. An internal comparator in the device monitors the output voltage of the regulator to detect an undervoltage condition on the regulated output voltage.
