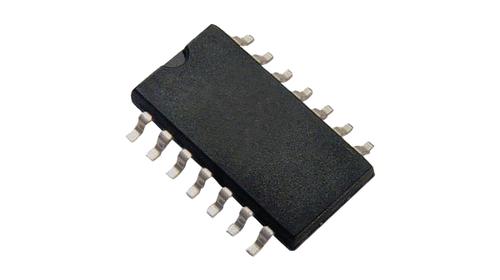

The TL084ACD is a JFET-input Operational Amplifier designed to offer a wider selection than any previously developed operational amplifier family. The JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents and low offset-voltage temperature coefficient.
1.4mA/channel Typical low power consumption
Wide common-mode and differential voltage range
30pA Typical low input bias current
5pA Typical low input offset current
Output short-circuit protection
0.003% Typical low total harmonic distortion
JFET input stage high input impedance
Latch-up-free operation
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
