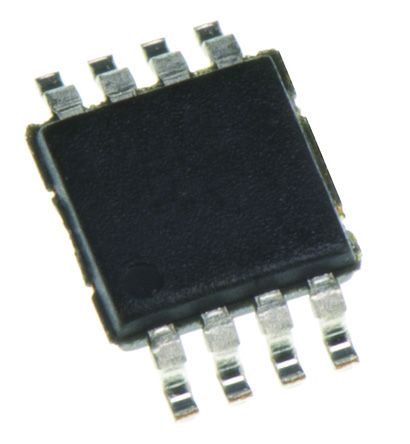

The THS413x is one in a family of fully-differential input/differential output devices fabricated using Texas Instruments" state-of-the-art BiComI complementary bipolar process. The THS413x is made of a true fully-differential signal path from input to output. This design leads to an excellent common-mode noise rejection and improved total harmonic distortion.
FEATURES
• High Performance
– 150 MHz, –3 dB Bandwidth (VCC= ±15 V)
– 51 V/µs Slew Rate
– –100 dB Third Harmonic Distortion at 250 kHz
• Low Noise
– 1.3 nV/√Hz Input-Referred Noise
• Differential-Input/Differential-Output
– Balanced Outputs Reject Common-Mode Noise
– Reduced Second-Harmonic Distortion Due to Differential Output
