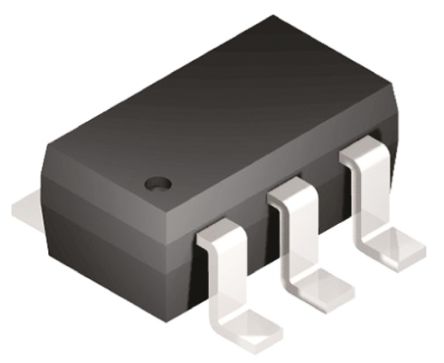

The SN74LVC2G14DBVT is a dual Schmitt-trigger Inverter. The device performs the Boolean function Y = A\\. The device functions as two independent inverters, but because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT-) signals. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
±24mA Output drive at 3.3V
<0.8V at VCC = 3.3V (typical) VOLP (Output ground bounce)
>2V at VCC = 3.3V Typical VOHV (Output VOH undershoot)
Inputs from a Maximum of 5.5V down
Maximum tpd of 5.4ns at 3.3V
Ioff supports live insertion, partial power down mode and back drive protection
10µA Maximum ICC low power consumption
Latch-up performance exceeds 100mA per JESD 78, Class II
