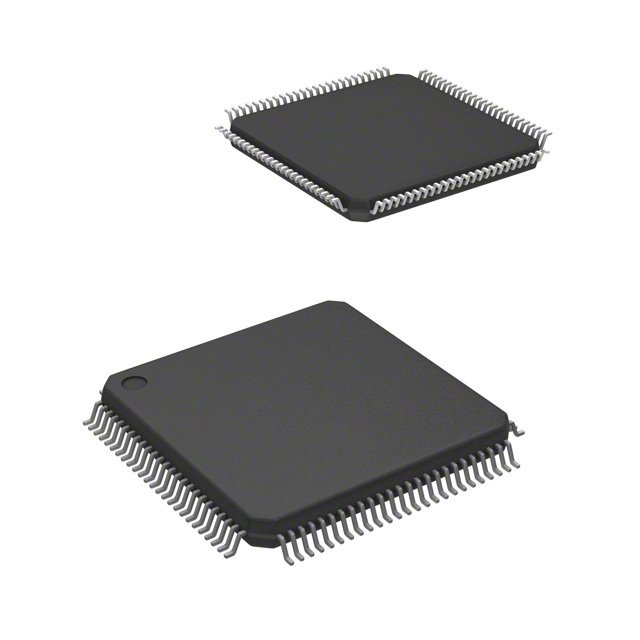

The MSP430F437IPZ is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6µs. The device configurations with two 16-bit timers, 12-bit A/D converter, liquid crystal display driver, a comparator and 48 general-purpose I/O pins. This device operates at a maximum frequency of 8MHz.
16-bit RISC architecture, 125ns instruction cycle time
12-bit ADC with internal reference, sample-and-hold and autoscan feature
16-bit Timer_B with 3 Capture/Compare with shadow registers
16-bit Timer_A with 3 Capture/Compare registers
On-chip comparator
Two serial communication interface (USART), select asynchronous UART or Synchronous SPI by software
Brownout detector
Supply voltage supervisor/monitor with programmable level detection
Serial on-board programming
No external programming voltage needed
Programmable code protection by security fuse
Integrated LCD driver for up to 160 segments
Bootstrap loader
280µA at 1MHz, 2.2V Active mode (AM) power consumption
