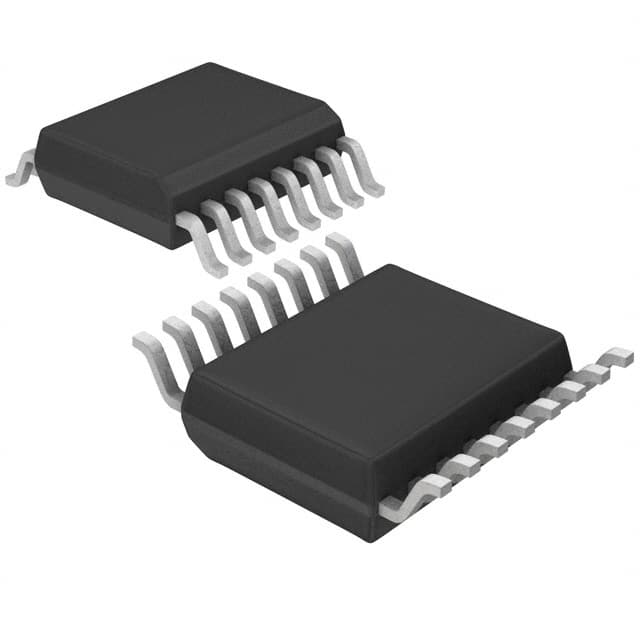

The INA250A2PW is a Voltage-Output, Current-Sensing Amplifier that integrates an internal shunt resistor to enable high-accuracy current measurements at common-mode voltages that can vary from 0 to 36V, independent of the supply voltage. The device is a bidirectional, low- or high-side current-shunt monitor that allows an external reference to be used to measure current flowing in both directions through the internal current-sensing resistor sensor. The integration of the precision current-sensing resistor provides calibration equivalent measurement accuracy with ultra-low temperature drift performance and ensures an optimized Kelvin layout for the sensing resistor is always obtained.
2mR Precision integrated shunt resistor
0.1% (Maximum) Shunt resistor tolerance
15A Continuous current from -40 to 85°C
10ppm/°C Temperature coefficient (0 to 125°C)
0.3% (Maximum) High accuracy gain error (shunt and amplifier)
