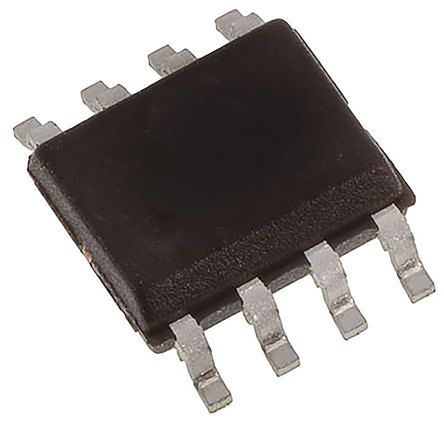

The INA126U is a Micropower Precision Instrumentation Amplifier for accurate, low noise differential signal acquisition. Their two-op-amp design provides excellent performance with very low quiescent current (175µA/channel). This, combined with a wide operating voltage range of ±1.35V to ±18V, makes them ideal for portable instrumentation and data acquisition systems. Gain can be set from 5V/V to 10000V/V with a single external resistor. Laser trimmed input circuitry provides maximum low offset voltage 250µV, maximum low offset voltage drift 3µV/°C and excellent common-mode rejection.
25nA Maximum low input bias current
3µV/°C Low offset drift
175µA/channel Low quiescent current
35nV/√Hz Low noise
Green product and no Sb/Br
ESD sensitive device, take proper precaution while handling the device.
