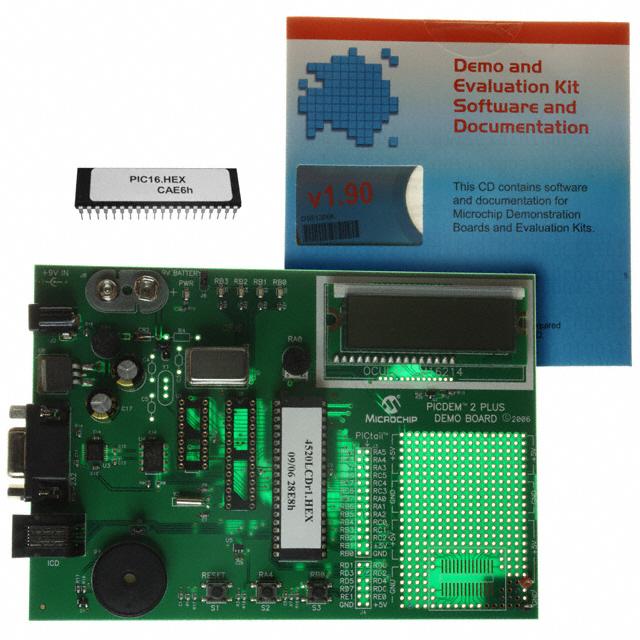

The DM163022 is a PICDEM 2 Plus demonstration board. The PICDEM 2 Plus demonstration board is a simple board that demonstrates the capabilities of microchip"s 8bit, 18 pin, 28 pin and 40 pin PIC16FXXX, PIC16F1XXX, and PIC18 devices. The PICDEM 2 Plus demonstration board can be used stand alone with a programmed part, with an in circuit emulator (for example, MPLAB REAL ICE) or with an in circuit programmer/debugger (such as MPLAB ICD 3 or PICkit 3). Sample programs are provided to demonstrate the unique features of the supported devices.
The 18 pin, 28 pin and 40 pin DIP sockets
On board, 5V regulator for direct input from 9V, 100mA AC/DC wall adapter or 9V battery
RS 232 socket and associated hardware for direct connection to an RS 232 interface
Programmer/debugger connectivity supporting MPLAB ICD 3, MPLAB REAL ICE and PICkit 3
PICkit serial connector for analysis of serial communications peripherals such as SPI or I2C
