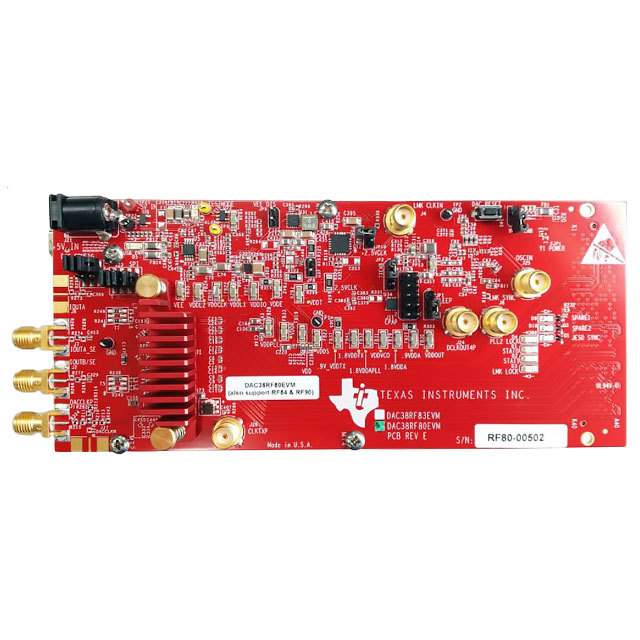

The DAC38RF80EVM is the circuit board for evaluating DAC38RF80/84/90 digital-to-analog converters (DACs). The EVM can be used to evaluate the performance of the DAC up to 9-GSPS sampling rate. It is designed to work with the FPGA-based pattern generator card TSW14J56EVM (Rev B and up). The available FMC connector on the EVM also makes it possible to interface the DAC to FPGA development boards from third-party vendors. Also available is an easy to use software interface to control the DAC and onboard LMK04828 clock chip via SPI.
