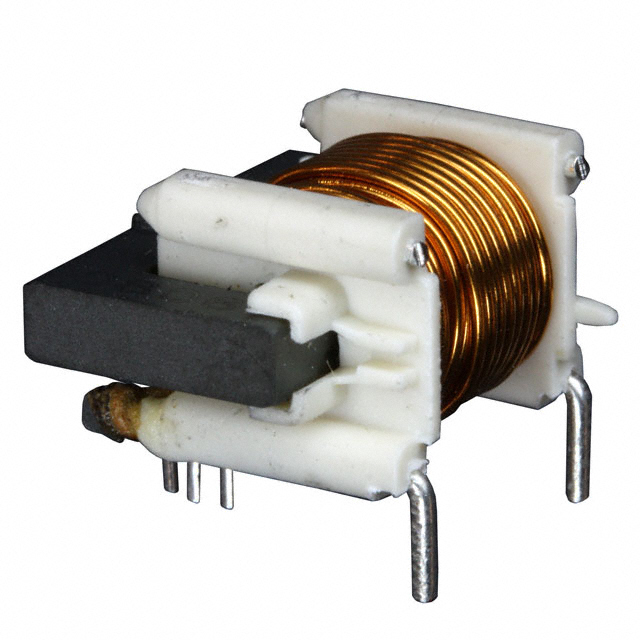

The CSLW6B1 is a miniature wired open-loop Current Sensor for increased sensitivity. The sensing element is encapsulated in a printed circuit board-mountable plastic package. The combination of sensor, flux collector and wire coil comprises the current sensor assembly. These sensors are ratiometric.
Wired Open-loop Design with Multiple Turns for Increased Sensitivity
AC or DC Current Sensing
Linear Ratiometric Output
Current Sinking or Sourcing Output for Interfacing Flexibility
Low Insertion Loss
Fast Response Time
Compact Size for Applications with Limited Space
Accurate, Low-Cost Sensing
Minimum Energy Dissipation
Maximum Current Limited only by Conductor Size
Maximum Current Limited only by Conductor Size
Built-in Temperature Compensation Promotes Reliable Operation
