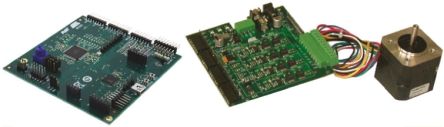

The ATAVRMC323 motor control bundle kit which includes the MC303 processor board, the MC300 power board and a small BLDC motor. The MC303 supports the XMEGA family of high performance devices that can handle various functions while the CPU handles motor control intensive algorithm. MC303 with DB101 top module. MC300 is intended to drive low voltage, medium power motors, The power board supplies the processor board. The Atmel motor control interface bus (AMCI bus) allows the communication between the power board and the processor board. The AMCI bus uses three 8bit connectors and one 8/16bit connector. The interface supports up to four phases (U, V, W, X), each with half bridge control and both voltage and current feedback. With three phase motors, the free X channel can be used for a brake function. The interface also supports Hall sensors, speed, temperature and fault signals and also allows the control of the PFC from the CPU board.
Processor board along with AVR processor, handles the motor control application and the other tasks
A USB interface for communication with the host using Atmel motor control PC software
