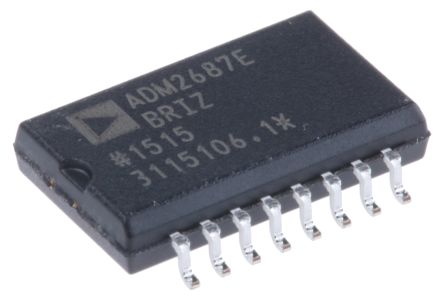

The ADM2687EBRIZ is a fully integrated 5kVrms signal and power isolated Data Transceiver with ±15kV ESD protection and are suitable for high speed communication on multipoint transmission lines. It includes an integrated 5kVrms isolated DC-to-DC power supply that eliminates the need for an external DC-to-DC isolation block. This ADM2687EBRIZ designed for balanced transmission lines and comply with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E). The devices integrate Analogue Devices, Inc., iCoupler® technology to combine a 3-channel isolator, a three-state differential line driver, a differential input receiver and Analogue Devices isoPower® DC-to-DC converter into a single package. The devices are powered by a single 5 or 3.3V supply, realizing a fully integrated signal and power isolated RS-485 solution. The driver has an active high enable.
5kVrms Isolated RS-485/RS-422 Transceiver, Configurable as Half or Full Duplex
isoPower® Integrated Isolated DC-to-DC Converter
±15kV ESD Protection on RS-485 Input/Output Pins
Complies with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E)
500kbps Data Rate
Connect up to 256 Nodes on One Bus
Open- and short-circuit, Fail-safe Receiver Inputs
>25kV/µs High Common-mode Transient Immunity
ESD sensitive device, take proper precaution while handling the device, Although it features patented or proprietary protection circuitry, damage may occur on devices subjected to high energy ESD.
