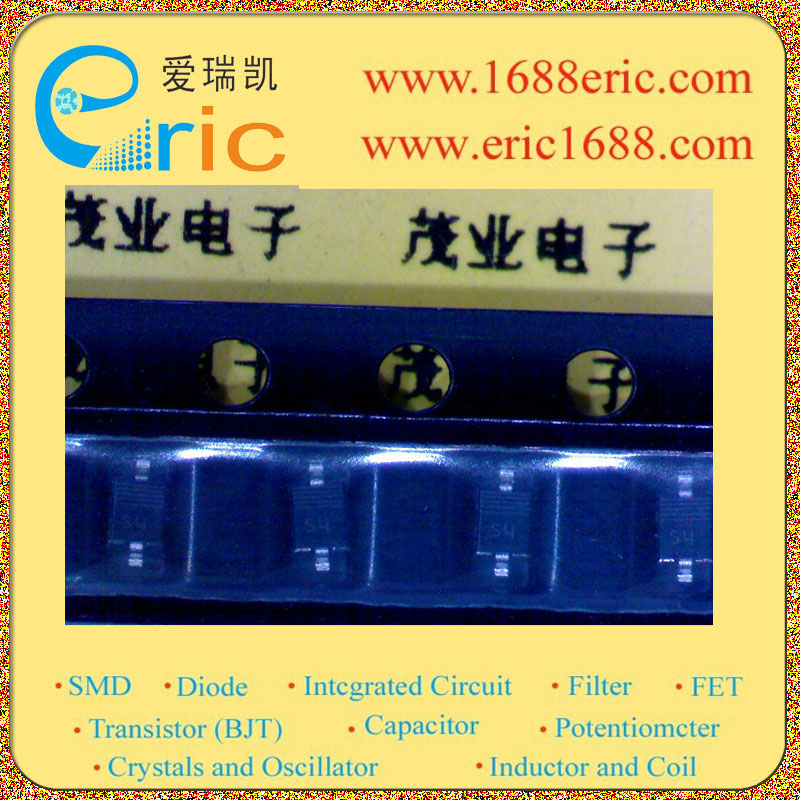

The 1PSxxSB4x series from NXP are surface mount general purpose schottky diodes. These diodes are configured in single, dual series, dual common cathode, dual common anode and quadruple common cathode/common cathode configuration. Applicable at ultra high speed switching and voltage clamping applications.
Automotive grade AEC-Q101 qualified
High switching speed
High breakdown voltage
Low leakage current and low capacitance
Maximum repetitive reverse voltage Vrrm of 40V
Non repetitive forward surge current IFSM of 200mA
Maximum forward voltage VF of 1V at IF 40mA
Maximum forward current IF(AV) of 120mA
Ambient temperature range from -65°C to 150°C
Available in SOT323(SC-70), SOD523(SC-79), SOT416(SC-75) and SOT363(SC-88) standard case styles
